IS GPX-1
The IMX can be configured for use with the Inertial Sense GPX-1 multi-band GNSS receivers. This can be done using either the EvalTool GPS Setting tab or the IMX DID_FLASH_CONFIG.ioConfig and DID_FLASH_CONFIG.RTKCfgBits fields.
| GPS Ports | Value |
|---|---|
| GPS Source | serial 0, serial 1, or serial 2 |
| GPS Type | GPX-1 |
| GPS1 Timepulse | Disable or IMX pin connected to GPX-1 |
| RTK Rover | Value |
|---|---|
| GPS RTK Mode | Position or Compass |
| RTK Base | Value |
|---|---|
| Serial Port 0 (Single GNSS only) | GPS1 - RTCM3 |
| USB Port | GPS1 - RTCM3 |
The following sections detail how to interface and configure the IMX for operation using the GPX-1. See RTK precision positioning and RTK compassing for RTK operation principles.
Typical Interface¶
The IMX will automatically configure the GPX-1 for communications.
Rugged-4 (Coming Soon)¶
The Rugged-4 INS contains the GPX-1 onboard supporting RTK positioning and compassing. GPS 1 and GPS 2 are connected to serial port 0 on the IMX-5.
The following is a list of the ZED-F9P GNSS receivers and compatible antenna(s).
| Item | Supplier# | Description |
|---|---|---|
 |
SparkFun: ANN-MB1-00 ublox: ANN-MB1-00 |
ublox Multi‑frequency GNSS antenna (L1, L2/E5b/B2I) active magnet mount. Supports GPS, GLONASS, Galileo, and BeiDou. 5m SMA cable. Designed for ZED-F9P. Dimensions: 82 × 60 × 22.5 mm |
 |
Mouser: ADFGP.50A.07.0100C Taoglas: ADFGP.50A.07.0100C |
Embedded Active GNSS Dual Stacked Patch Antenna with 100mm of 1.37 & IPEX MHFI Embedded Dual Patch, Dual Feed 4-Pin Assembly Covering Bands: • GPS/QZSS (L1/L2) • GPS/QZSS/IRNSS (L5) • Galileo (E1/E5a/E5b) • GLONASS (G1/G2/G3) • BeiDou (B1/B2a/B2b) Low Axial Ratio Cable: 100mm of 1. 37mm Connector: IPEX MHFI (U.FL) Dimensions: 50 x 50 x 16.8 mm RoHS & Reach Compliant |
 |

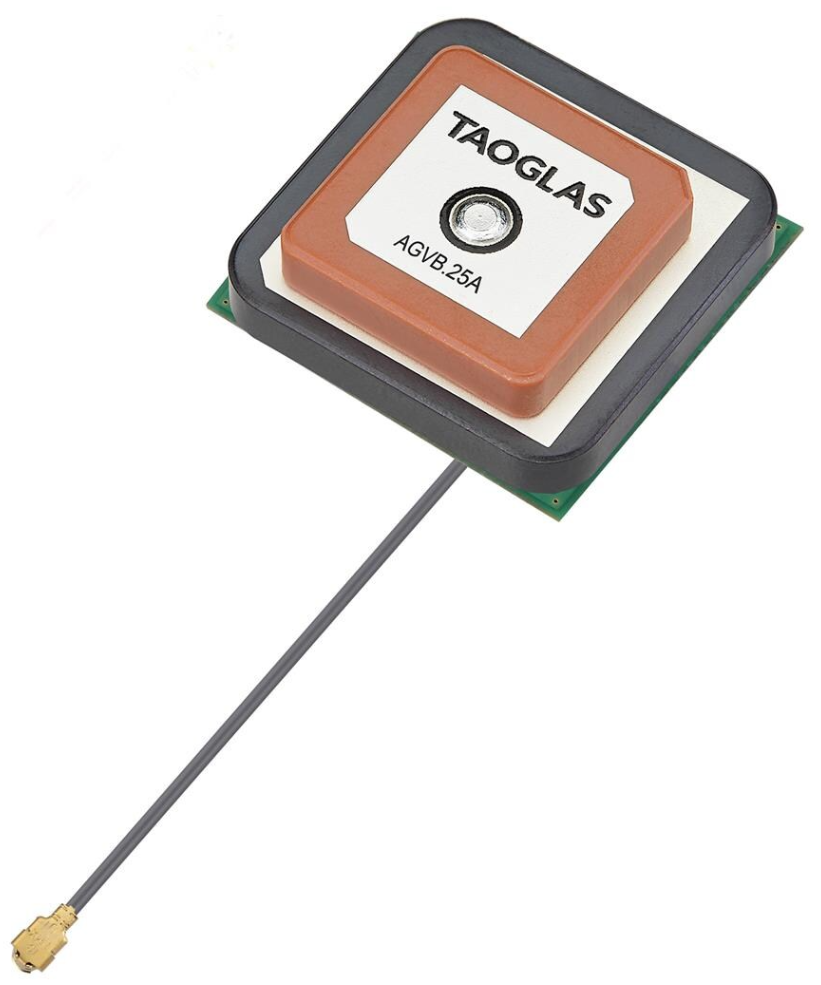

Mouser: AGVLB.25A/25B |
GPS L1 / L5 & BeiDou B1 Active Stacked Patch Antenna Features: Single Feed Stacked Patch Assembly Covering Bands - GPS L1 & L5 - BeiDou B1 - IRNSS L5 Low Axial Ratio Tuned for Centre Positioning on a 7070mm Ground Plane Dimensions: 25 x 25 x 12 mm Cable: 60mm of Ø1.13mm Connector: I-PEX MHF® I (U.FL Compatible) RoHS & REACH Compliant |
 |

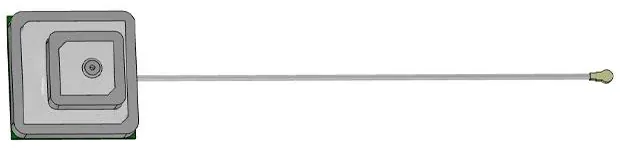

Mouser: APARC2511X-SGL2L5 |
Antennas Internal/Embedded Antennas Active Patch Connector Mount IPEX (F) Dimensions: 25 x 25 x 11.6 mm |
